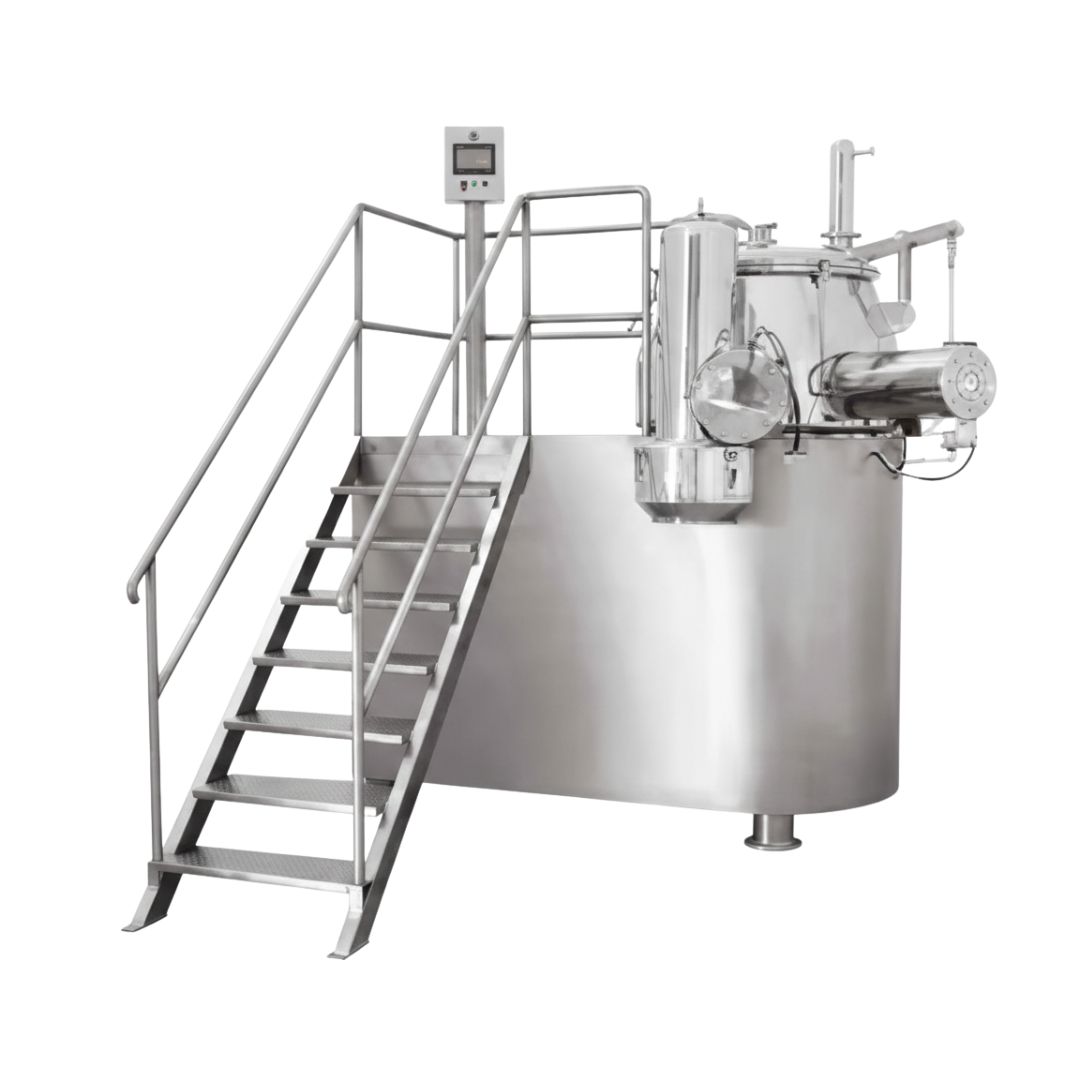

High Shear Mixer Granulator (HSMG)
The High Shear Mixer Granulator is engineered to meet the specialized requirements of modern tablet formulation technology. By reducing processing time and ensuring even distribution of binders, it facilitates homogeneous mixing, wetting, nucleation, and controlled granule size growth.
Core Design & Engineering
Our HSMG features a unique design that integrates the impeller, granulator, and an online co-mill with a side discharge valve for seamless operation. The system is built for high-performance and strict regulatory compliance.

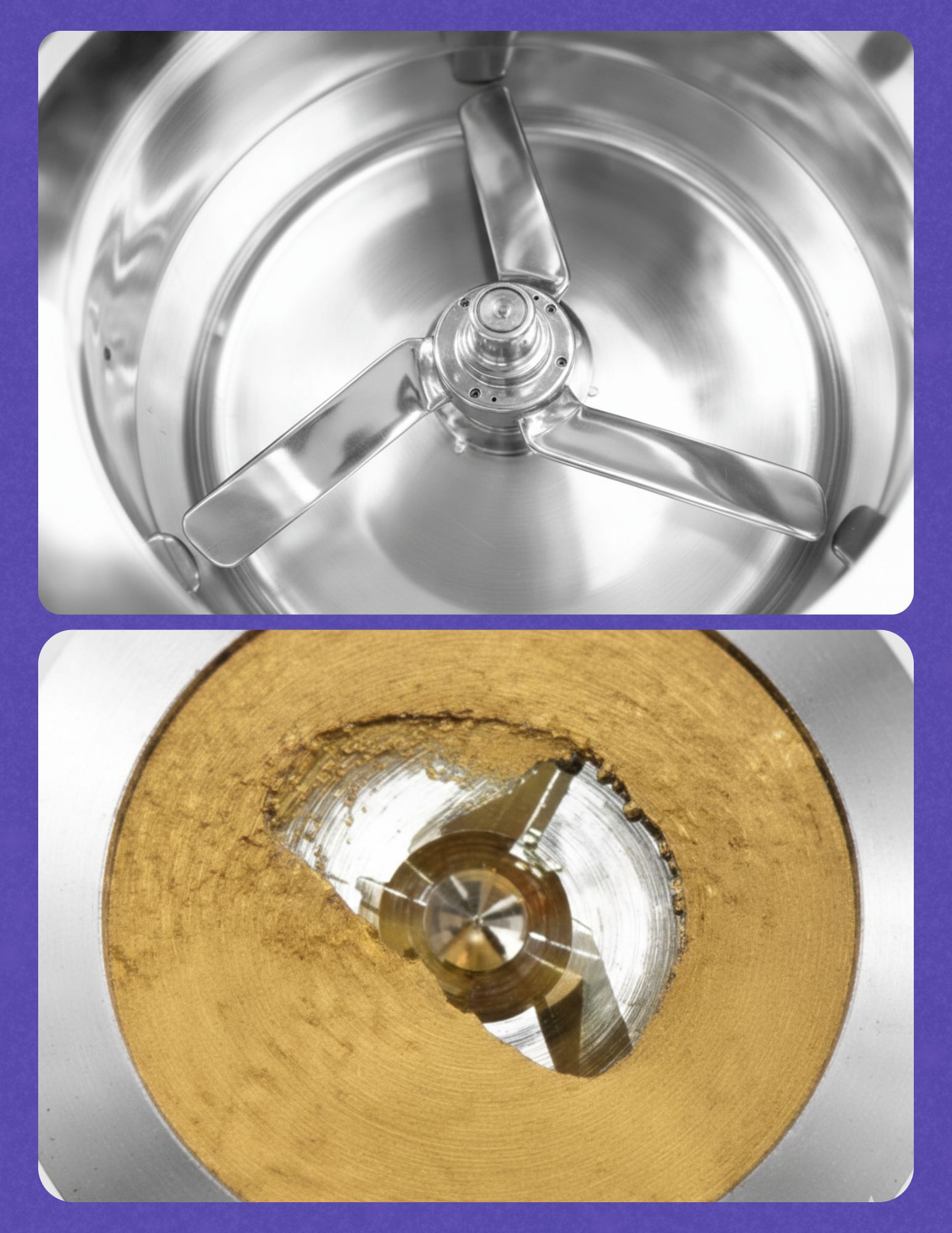

Precision Impeller: Features a tangential blade assembly with an inclined profile to ensure maximum mass movement and superior mixing quality.

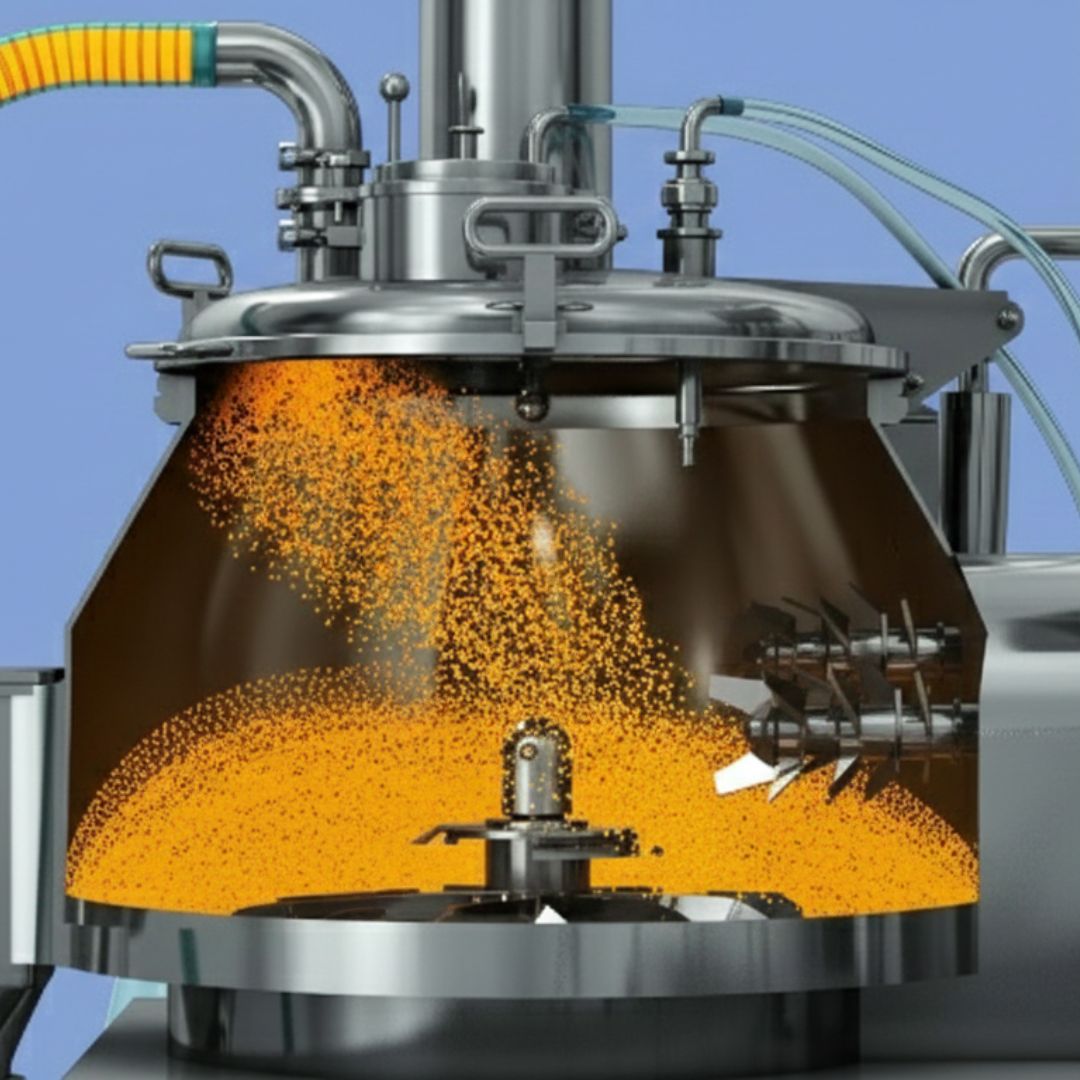

Mixing Patterns: Utilizes a circumferential mixing pattern with a roping trajectory flow for optimized powder blending.
Surface Integrity: The internal bowl features a mirror finish of 0.3RA, while the exterior is finished to a 0.76RA matt finish.
Safety Standards: The unit is compliant with cGMP norms and offers optional ATEX compliant configurations for hazardous environments
Key Features
Advanced Monitoring: Optional torque sensor arrangement mounted to monitor critical parameters like end-point determination and granule profiles.
Lifting Versatility: Choice of manual impeller lifting for easy cleaning or a hydraulically operated lid lifting system.
Maintenance Friendly: Parts are designed to be easily dismantled, cleaned, and re-assembled to reduce production downtime.
Sealing & Plumbing: Equipped with Teflon or Silicon gaskets and pre-tubed pneumatics for immediate reliability
Operational Benefits
Consistent Quality: Achieve uniform distribution of all formulation ingredients and produce uniform granules through gentle processing.
Flexible Capacity: Useful working capacity ranges from 30% to 80% of the bowl volume to suit varying batch sizes.
Simplified Scale-up: Designed for easy scale-up and scale-down between different machine sizes.
Compliance Ready: Fully automated system for QBD compliance, provided with a standard documentation package.
25+
Serving Customers
Optional Enhancements
To further customize your process, we offer:
Jacketed models for temperature control.
Vacuum or gravity charging systems.
Binder spraying systems and mechanical seals.
Integrated SCADA solutions and CIP/WIP systems.
Ready to Optimize Your Production?
Explore our full range of granulation, drying, and blending technologies. Get in touch with our experts for customized fabrication and turnkey piping solutions.
