Reaction Vessel
Our Reaction Vessels are engineered for high-performance chemical synthesis and pharmaceutical processing. Designed for heavy-duty industrial applications, these vessels are built to handle critical reactions under varying temperatures and pressures while strictly adhering to ASME and cGMP standards.
Core Engineering & Design
Every GR Pharma Machine CIP system is custom-designed to suit the specific layout and cleaning requirements of your plant, emphasizing both sustainability and efficacy.
Robust Construction: Fabricated from high-grade AISI SS 316L for all contact parts, providing excellent resistance to corrosion and chemical reactions.
Precision Agitation: Equipped with customized agitator types—including Anchor, Turbine, Propeller, or Paddle—to ensure optimal heat transfer and homogeneous mixing.

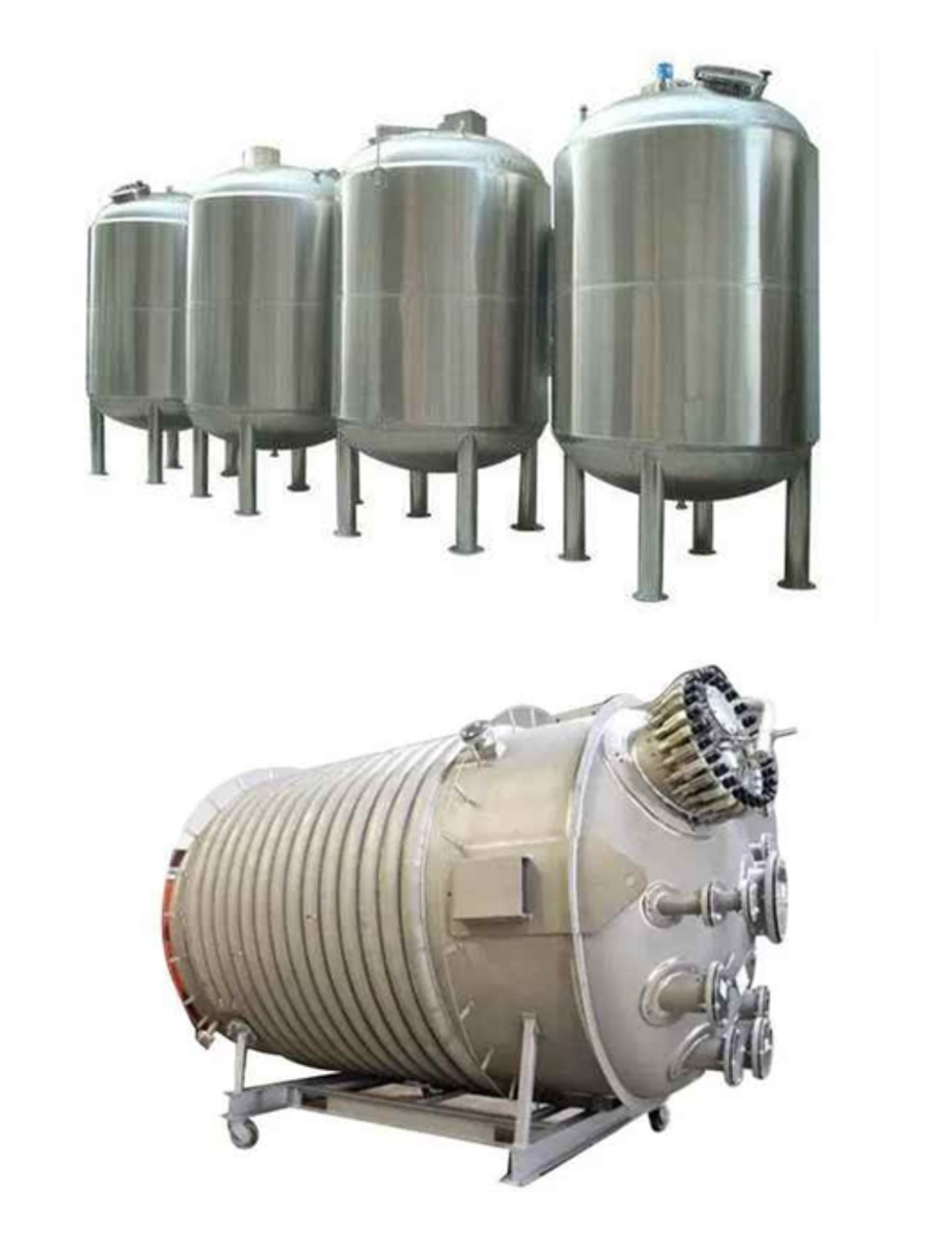

Thermal Management: Available with specialized jacket options (Plain, Dimple, or Limpet Coil) for efficient heating and cooling cycles.
Sealing Integrity: Features high-quality mechanical seals (single or double) to maintain pressure/vacuum levels and prevent batch contamination.
Surface Excellence: Internal surfaces are polished to a mirror finish (<0.4 Ra) to prevent material adherence and ensure thorough cleaning.
Key Features
Versatile Capacities: Standard models range from 20 Liters to 20,000 Liters, with bespoke designs available for Kilo-lab facilities.
Instrumentation Ports: Includes standard nozzles for temperature sensors, pressure gauges, sight glasses, and CIP spray balls.
Structural Support: Mounted on sturdy MS or SS legs, or designed for mezzanine floor installation with support lugs.
Safety Focused: Built with safety valves and rupture discs to protect against over-pressurization during volatile reactions.
Operational Benefits
Customized Fabrication: Tailored to meet specific facility layouts and process requirements, including specialized materials like Hastelloy or Titanium for highly acidic environments.
Compliance Ready: Fully compliant with cGMP norms, with a comprehensive documentation package for validation (DQ, IQ, OQ).
Long-Term Reliability: Engineered for 24/7 operation with minimal maintenance requirements.
25+
Serving Customers
Application Areas
The GR CIP/WIP systems are essential for the high-purity cleaning of:

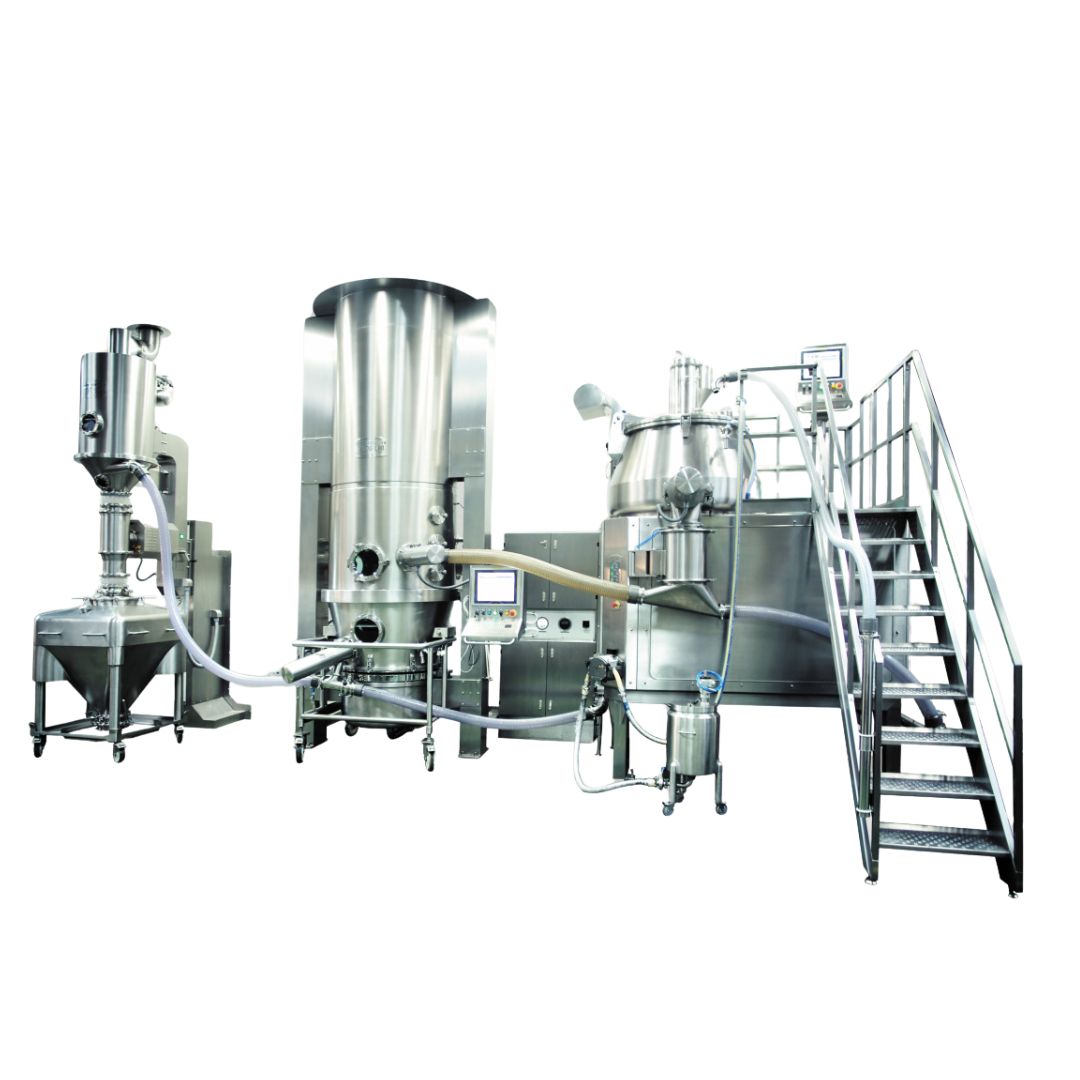

High Shear Mixer Granulators (HSMG)
Fluid Bed Dryers (FBD)
Reaction Vessels and Fermenters
Interconnecting Process Piping
Blending Bins and Storage Tanks
Ready to Optimize Your Production?
Explore our full range of granulation, drying, and blending technologies. Get in touch with our experts for customized fabrication and turnkey piping solutions.
